Semi automatic Desktop Pick And Place Machine 4 head Chip Mounter PCB Manufacturing

Markenbezeichnung:	HXT
Modellnummer:	HXT4T-30F
MOQ:	1
Preis:	3600 USD
Verpackungsdetails:	Holzkastenverpackung
Zahlungsbedingungen:	T/T

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

China

Zertifizierung:

Maximale Boardgröße:

600x450mm

Platzierungsgeschwindigkeit:

11000/CPH

Platzierungsgenauigkeit:

±0,01 mm

Druckluft:

0,5-0,6 MPA

Teilstrecke:

0402,0603,0805,1206

Stromversorgung:

220V/50HZ

Versorgungsmaterial-Fähigkeit:

Die Produktionskapazität beträgt 50 Stück pro Monat.

Produkt-Beschreibung

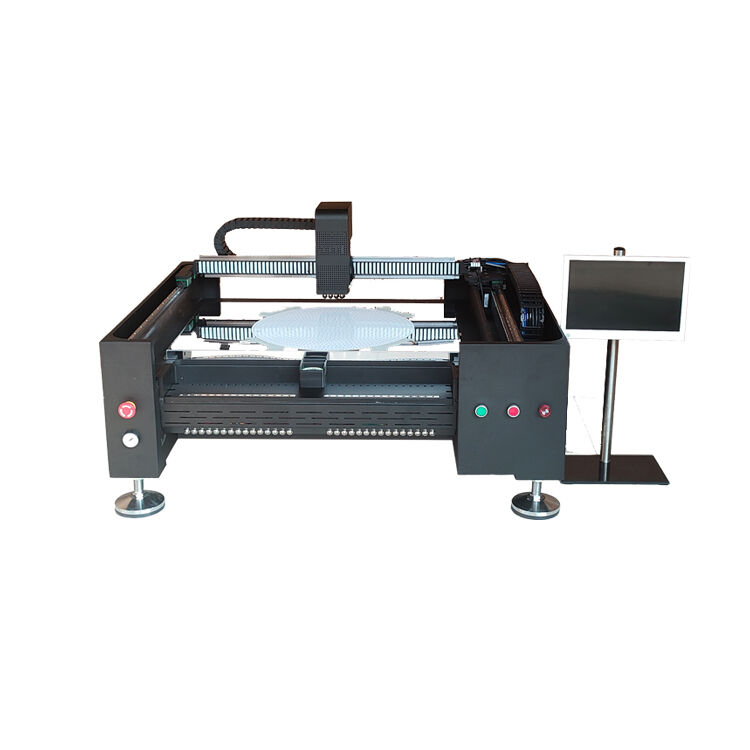

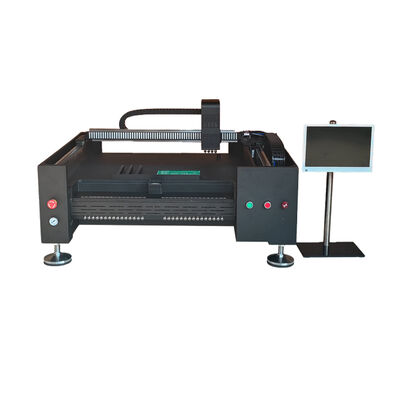

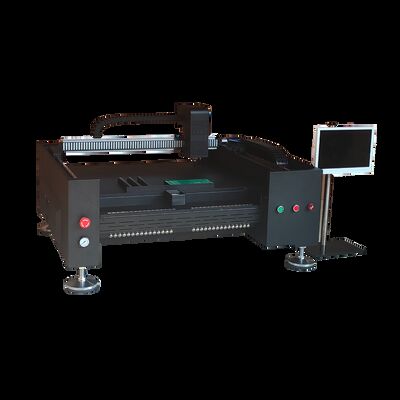

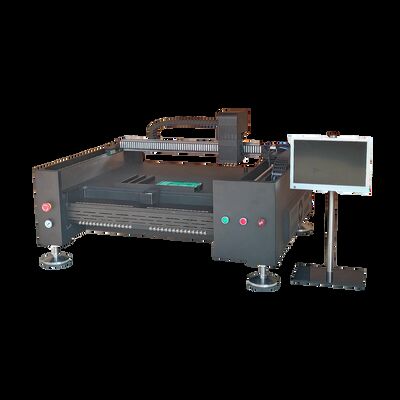

Semi Automatic Desktop 4 Head Pick and Place Machine

Semi automatic Desktop Pick And Place Machine 4 head Chip Mounter PCB Manufacturing 0

This small high-precision production placement machine is built on a third-generation intelligent placement platform featuring the Intelligent Placement System V1.0.

The system memorizes and synchronizes key programming parameters, allowing for customized upgrades based on specific production scene requirements. The high-speed laser flying camera works in coordination with the XY-axis grating ruler closed-loop solution, delivering excellent and industry-leading accuracy and speed performance.

The E-Series desktop placement machine is ideal for small-batch, high-mix production environments where precision, flexibility, and ease of use are critical.

Technical Specification

Model	HXT4T-30F
Number of mounting heads	4
Identification method	Flight camera system
Chip recognition	Precision Camera System
Camera	There are 2 flight cameras + MARK recognition cameras
Maximum mounting area	600*450mm
Z-axis maximum distance of movement	31MM suction nozzle with protection/35 closed-loop motor/co-feed
Feeder	can be installed 70 piece
Maximum mounting speed theory	11000/CPH
Average actual mounting speed	9500/CPH
PCB transfer board mode	Enter board by Hands
Positioning accuracy	0.01MM
Suction nozzle buffer range	4MM
Motion driven system	High precision DSP digital low voltage drive
Motor system	220V AC linear motor /Y400W + X400W
Rotation mode	Screw 2020/domestic high-speed slider HGH/HRT20
Power Supply voltage	220V/50HZ
Compressed Air	0.5-0.6MPA
Average power	350W
Number of support feeders	30 bit pneumatic/electric universal
Range of mounting varieties	0402,0603,0805,1206 transistor SOT TSOP SOP 0.5 pin pitch of PLCC CSP QFP Bga et al.
Component angle	0-360 degrees
The Way You Move	Humidification curve control
The operating system	WIN 10
Number of installable trays	Three
PC software	High Speed 2024
Product weight	About 150 kg
Product Dimensions	1100 * 900 * 650mm length, width and height
